Unistrut systems rank among the most versatile metal framing solutions in construction and industrial work. Within this family, P2265 Unistrut stands out for its strength, flexibility, and quick installation without cutting or welding on site. Engineers specify the Metal Framing P2265 Channel whenever a project calls for angled connections that hold up under load. This guide covers the specifications, applications, benefits and selection factors for choosing a P2265 Unistrut Channel.
What Is P2265 Unistrut?

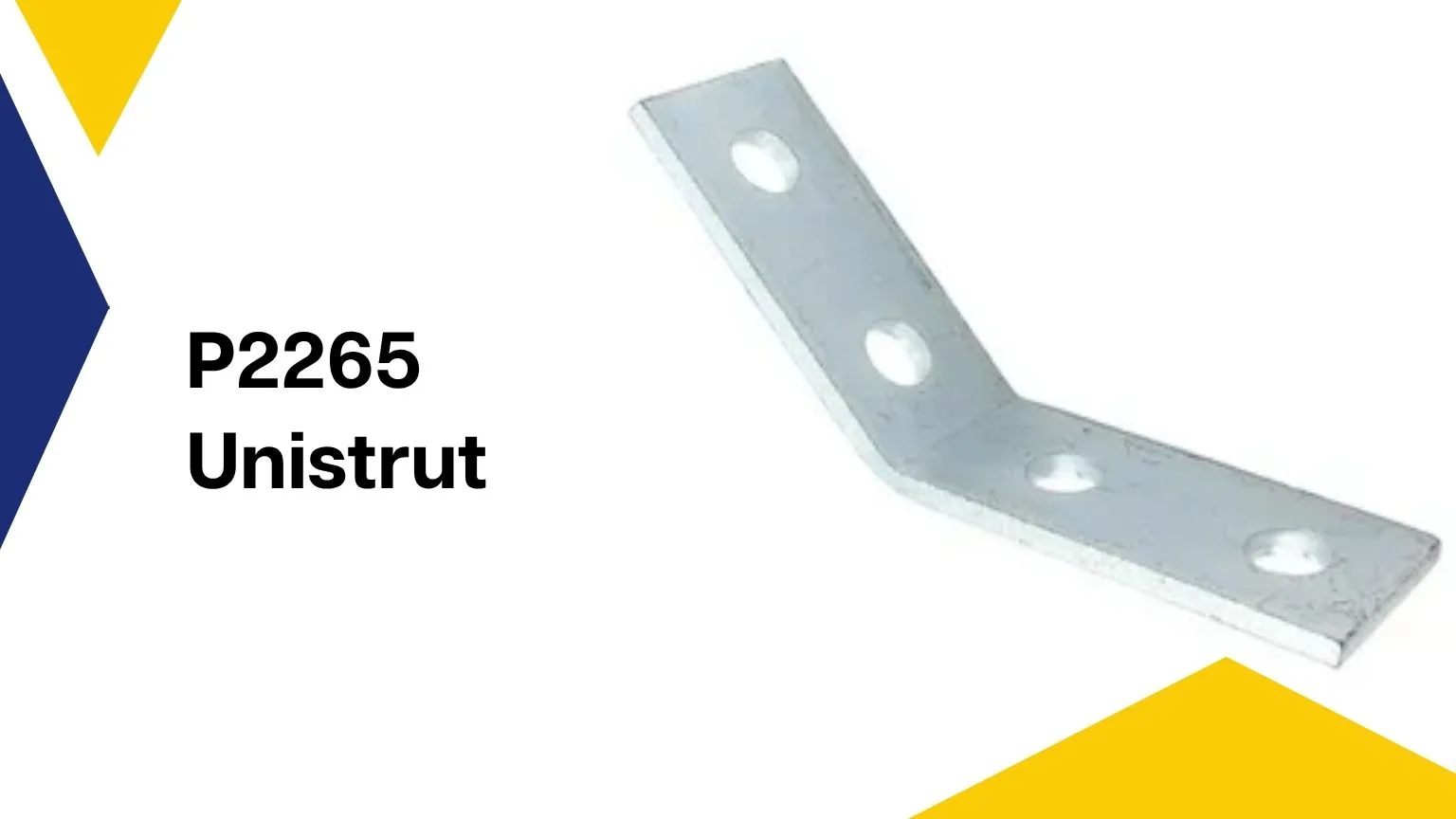

P2265 Unistrut is a 4-hole, 45-degree outside angle fitting that connects 1-5/8 inch strut channel sections at a fixed angle without a welded joint. Its flat, punched profile measures roughly 3-1/2 inches by 3-11/16 inches, with a channel width of 1-5/8 inch (41mm) and thickness of either 1/4 inch (6.4mm) or 0.220 inch (5.6mm). Manufacturers produce the Unistrut P2265 channel in mild steel, pre-galvanized steel, hot dip galvanized steel, and stainless steel. That material range keeps the fitting central to modular framing systems across so many industries.
Specifications of P2265 Unistrut Channel
Before ordering, engineers compare hole spacing, gauge thickness, and finish against project load requirements.
| Specification | Detail |
| Mounting | 4-hole, 45-degree outside angle |
| Overall size | 3-1/2″ x 3-11/16″ |
| Channel width | 1-5/8″ (41mm) |
| Thickness | 1/4″ (6.4mm) or 0.220″ (5.6mm) |
| Hole diameter | 9/16″ (14mm) |
| Hole spacing (on-center) | 1-7/8″ (48mm) |
| Steel grade | ASTM A1011 SS Gr 33 or HSLAS Gr 45 |
| Finishes | Plain, Perma-Green, electrogalvanized, hot dip galvanized, 304/316 stainless |
| Standards referenced | ASTM A1011, ASTM A653, ASTM A240, ASTM A123 |
Each finish carries its own ASTM designation. Stainless steel conforms to ASTM A240, while hot-dip galvanized pieces meet ASTM A123 for coating thickness. That distinction matters most when a P2265 Unistrut Channel goes into a coastal or high-humidity site.
Key Features of P2265 Strut Channel
These seven features explain why engineers keep specifying this fitting for framing and support work.
- The fitting delivers high structural strength at its 45-degree connection point.
- It carries a substantial load without deforming under sustained weight.
- Corrosion and weather resistance come standard across galvanized and stainless finishes.
- Installers connect sections without welding, cutting, or specialized tools.
- The bolted design allows quick adjustment as project needs change.
- It works with a wide range of Unistrut accessories and hardware.
- Properly finished units deliver long service life with minimal upkeep.
Applications of P2265 Unistrut
From electrical work to solar mounting, this fitting connects framing sections wherever a strong 45-degree joint is needed.
Electrical Conduit Support Systems
Electricians install conduit in a variety of ways with P2265 Unistrut, including around obstacles without cutting additional sections of conduit, keeping installation time shorter and connections mechanically sound throughout.
Cable Tray Installations
Cable tray sections are joined together with angled brackets to create a supported, continuous path for the routing of data and power cabling at corners and equipment rooms in the building.
HVAC Duct and Pipe Supports
Mechanical contractors anchor ductwork and pipe runs at 45-degree turns, distributing weight evenly across the strut frame and reducing stress on individual mounting points.
Plumbing Support Frameworks
Plumbing crews rely on the P2265 Strut Channel to build angled support frames for risers and horizontal runs, keeping pipework aligned through mechanical rooms and shafts.
Solar Panel Mounting Structures
The mounting frames are angled to match the roof pitch or ground-mount tilt, providing a stable base for the panel arrays that resists wind loading over years of outdoor exposure.
Industrial Machinery Support
The fitting is used by facilities teams to build angled equipment frames and guarding structures, allowing quick layout changes when machinery moves or lines are reconfigured.
Warehouse Shelving Systems
Storage racks gain corner rigidity from 45-degree connections, letting warehouse teams build custom shelving footprints around columns, doorways, and irregular floor plans.
Commercial and Residential Construction Projects
Builders specify this fitting for signage frames, mezzanine supports, and interior partition framing, wherever a bolted angle connection replaces slower on-site welding work.
Benefits of Using P2265 Unistrut Channel
Beyond raw strength, this fitting saves time and money across a framing project’s full life.
Faster and Easier Installation
Bolted 45-degree connections go together with a wrench and channel nut, cutting installation time compared to cutting, welding and grinding a custom angle joint.
Reduced Fabrication and Labor Costs
Eliminating welding removes the need for certified welders, protective equipment and site permits, which lowers total labor cost on framing and support work.
High Flexibility for Future Modifications
Bolted joints unbolt just as easily as they go together, so teams can reposition, extend or dismantle framing sections without cutting into existing structural steel.
Strong and Reliable Support System
The 1/4 inch gauge steel and 4-hole mounting pattern distribute load across multiple bolt points, giving the connection consistent strength under sustained weight.
Durable Performance in Harsh Environments
Hot dip galvanized and stainless steel finishes are resistant to rust, salt and UV that extend the life of outdoor installations over years of weathering.
Low Maintenance Requirements
The inspection and maintenance schedule for galvanized and stainless steel is reduced to half that of painted steel fittings, since they do not require repainting or recoating on normal occasions.
Cost-Effective Framing Solution
Standardized dimensions and bolt-together assembly reduce material waste and rework, making this fitting a lower total-cost option across large-scale framing projects.
Factors to Consider When Choosing P2265 Unistrut
Selecting the right variant means matching the fitting to load, environment and the rest of the framing system.
- Work out load requirements before choosing thickness and steel grade.
- Verify if the installation is inside or outdoors, where it will be exposed to outdoor conditions.
- Choose the appropriate material and end treatment for the local humidity and chemicals.
- Match the corrosion resistance rating with the expected service life.
- Check the size and thickness of the channel against the sections of the connecting struts.
- Verify accessory compatibility of the existing nuts, bolts and bracket hardware.
- Verify adherence to engineering requirements and ASTM standards.
Conclusion
P2265 Unistrut provides the compact 45-degree design, strength, corrosion resistance and bolt-together simplicity that today’s framing projects demand. Its specifications and finishes make it ideal for applications ranging from solar mounting to industrial support. Robexstrut carries this fitting in all grades of steel and finishes to assist engineers in choosing the correct P2265 Unistrut Channel for lasting reliability.
