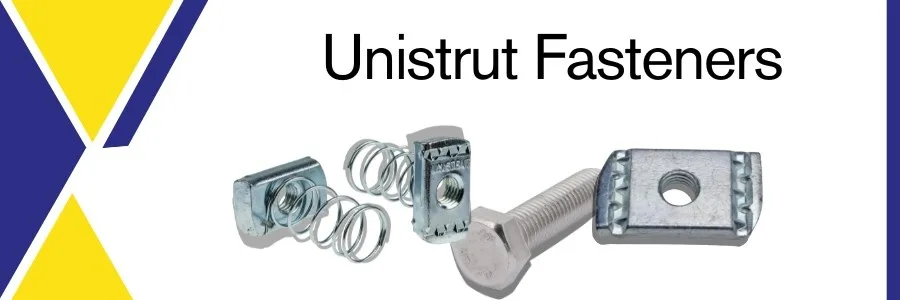

Unistrut fasteners are essential components in Unistrut systems, which are used for supporting electrical, mechanical, and industrial frameworks. These fasteners play an important role in providing structural stability and ensuring that various components are securely held together. In this blog, we will discuss what Unistrut fasteners are, the different types available, their applications, how to choose the right fasteners, and the step-by-step installation process.
What Are Unistrut Fasteners?
Unistrut fasteners are unique hardware pieces that are used with Unistrut channel systems. They assist in connecting various components of the structure to provide a solid, and secure system. The fasteners enhance the system by providing even weight distribution and restricting movement. They find applications in construction, electrical fittings, and other industries.
Types of Unistrut Fasteners
Channel Nuts with Spring
Spring Nuts are widely used Unistrut fasteners designed to fit securely into Unistrut channels. The built-in spring helps position the nut accurately within the channel, making the installation process quicker and more efficient. Spring Nuts are commonly used in mechanical and electrical support systems, offering a reliable and easy fastening solution.
Channel Nuts without Spring
Channel Nuts without springs function similarly to their spring-loaded counterparts but do not include the added tension of a spring. This makes them ideal for situations where greater flexibility in positioning is needed. Despite lacking a spring, Channel Nuts still deliver a secure and dependable hold within Unistrut channels.
Steel Threaded Rod
A steel threaded rod is a long, straight metal rod with threads running along its length. These rods are used for suspending Unistrut frameworks from ceilings or walls. They provide excellent load-bearing capacity and are often used in HVAC, electrical, and plumbing installations.
Lock Washers
Lock washers are tiny but vital parts that prevent fasteners from loosening due to vibrations or outside forces. They are installed under nuts, or bolts to provide additional friction so that connections are kept tight and secure.
Hex Head Cap Screws
Hex head cap screws are sturdy fasteners with a hexagonal head that allows easy tightening using a wrench or socket. They are commonly used in heavy-duty Unistrut applications to provide a firm and reliable connection.
Bolts & Screws
Bolts and screws are essential for assembling Unistrut structures. They come in various sizes and materials to suit different applications. These fasteners help secure brackets, fittings, and other components, ensuring structural integrity.
Applications of Unistrut Fasteners
Unistrut fasteners find applications in numerous industries to offer strong and dependable support for a variety of structural and mechanical uses. They are employed in electrical installations for cable tray, conduit, and electrical panel support. In HVAC systems, they are used to mount air ducts, fans and other equipment firmly. Industrial structures such as workstations, shelves, and heavy-duty supports also find application with Unistrut fasteners for support. They are also important in solar panel installation, mounting systems, and solar panels in place. The plumbing system also finds use with these fasteners, since they support pipes and other parts of plumbing, contributing to organized and efficient installations.
How to Choose the Right Unistrut Fasteners
In order to select appropriate unistrut fasteners you must understand the particular demands of your application some of which are:
Load Capacity Considerations
The capacity of the load for the fastener is important in maintaining the stability of the structure. Always inspect the fastener’s weight-bearing capability to suit the targeted application. Heavier loads demand stronger fasteners such as steel threaded rods and hex head cap screws.
Unistrut Fasteners Material Types
Unistrut fasteners come in various materials, each suited for particular applications and environments.
- Stainless Steel
Stainless steel fasteners have corrosion resistance and are best suited for outdoor, marine, and high-humidity applications. The most common grades are 304 stainless steel, which is best for general corrosion resistance, and 316 stainless steel, which has better corrosion resistance from aggressive chemicals and seawater. - Galvanized Steel
Galvanized steel fasteners are coated with zinc to prevent rusting. There are two types:
Electro-galvanized (zinc-plated) – A thin zinc layer for indoor or mild outdoor use.
Hot-dip galvanized – A thicker zinc coating for stronger corrosion resistance in industrial and outdoor environments. - Plain (Mild) Steel
Plain steel fasteners are non-coated and most suitable for use in interiors where there will be no risk of corrosion. They are strong and affordable but might need extra coating if used in humid or outside conditions.
The choice of proper Unistrut fastener material is based on factors such as exposure to moisture, the environment and the load demands.
Environmental Factors
Consider the environment where the fasteners will be used. For outdoor applications, choose corrosion-resistant materials like stainless steel or galvanized steel. For indoor applications, standard steel fasteners may be sufficient.
Step-by-Step Installation Guide
The process of installing Unistrut fasteners is a simple process that provides structural integrity. Start with the collection of materials, locating points of installation and putting in the appropriate fasteners, including channel nuts or bolts. Secure parts, such as brackets or rods with screws and bolts and then tighten it all up tightly with a screwdriver. Finish by checking the installation for stability, with tight connections and proper alignment for a secure and long-lasting system.
Summary
In summary, through the proper selection and installation of Unistrut fasteners, you can have a strong and stable structure for many applications. In electrical, HVAC, and industrial environments, proper fasteners improve safety and efficiency. Maintenance and proper installation will make your Unistrut system last longer, thus making it a good option for structural support.
