Proper installation of Unistrut channels begins with accurate measurements and clear planning. Mark the mounting points carefully and ensure surfaces are clean and level. Install the brackets securely using suitable anchors based on the surface type. Once brackets are fixed, position the Unistrut channel and align it properly. Tighten all bolts and connections to ensure a rigid and stable structure. Following each step with precision ensures a safe, efficient, and long-lasting support system.
How to Install Strut Channel?
Here’s a step-by-step guide to installing Unistrut channels properly:
Measure & Mark
Before anything else, measure the area where you plan to install the strut. Use a measuring tape and mark the mounting points with a pencil or marker. Ensure that all marks are level and evenly spaced. If the installation is for a ceiling or wall, make sure it’s aligned properly using a level tool. This first step avoids crooked or uneven installation.
Prepare the Channels
Cut the Unistrut channel to the required length using a saw suitable for metal (like a hacksaw or chop saw). Always wear safety gear like gloves and eye protection. After cutting, smooth out the edges with a metal file so there are no sharp or jagged parts. Make sure to check the fit before moving forward.
Mount Channel Brackets
Brackets hold the channel in place. Choose the right type of bracket for your surface whether it’s a wall, ceiling, or floor. Use heavy-duty anchors or screws, especially if attaching to concrete or brick. Drill holes at your marked spots and attach the brackets securely. Always double-check that they are level and firmly fixed.
Attach the Strut Channels

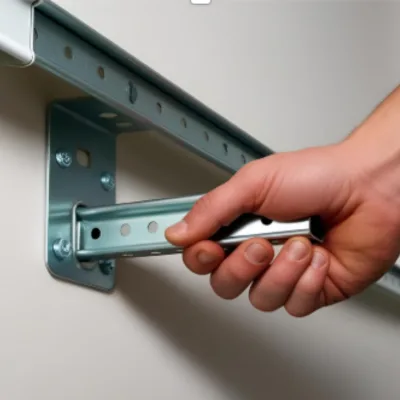

Now that the brackets are mounted, it’s time to attach the Unistrut channels. Slide the channel into place and secure it using bolts and nuts provided in the kit. Use channel nuts (spring nuts) that are designed to slide into the channel and hold fast when tightened. Make sure everything lines up and stays in position.
Secure Additional Components
Once the main channel is fixed, you can add any accessories like clamps, pipe holders, or shelves. These are also attached using bolts and channel nuts. Make sure you follow the manufacturer’s guide for spacing and load limits to avoid overloading.
Tighten Connections

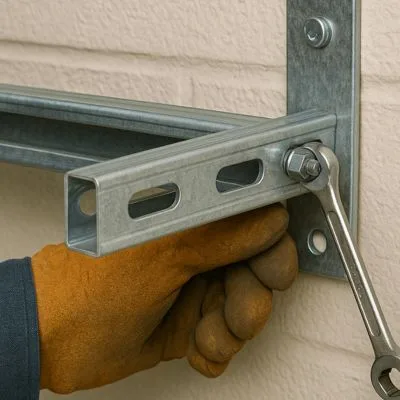

Go over all the bolts and nuts with a wrench or ratchet. Make sure every connection is tight, but don’t overtighten you don’t want to strip threads or damage parts. It’s a good idea to recheck all fasteners after the structure is in use for a while to ensure nothing has loosened.
Common Mistakes to Avoid
- Poor Measurements: If you don’t measure and mark correctly, your structure may be crooked or unstable.
- Using the Wrong Hardware: Always use compatible unistrut bolts, nuts and brackets. Cheap or mismatched parts can lead to failure.
- Ignoring Load Limits: Overloading the channel can cause it to bend or collapse.
- No Planning: Not planning the layout can lead to wasted materials and time. Sketch the plan first.
- Skipping Safety Gear: Always use gloves, eye protection, and the right tools for cutting and drilling.
Where is Strut Channel Used?
Strut channels are used in many industries due to their strength and flexibility. Some common uses include:
- Electrical systems: Strut channels are often used to hold electrical conduit, lighting fixtures, cable trays, and panels. They provide neat, organized support that can be adjusted or expanded easily.
- HVAC systems: In heating, ventilation, and air conditioning setups, strut channels are used to hang air ducts, fans, and units from ceilings or walls. Their strength ensures proper support for heavy equipment.
- Plumbing: Strut channels secure water, gas, and drainage pipes along walls or ceilings. They help keep pipes stable, aligned, and protected from vibration or damage.
- Construction: These channels are used for creating frames, wall supports, ceilings, partitions, and platforms. Their modular nature makes them suitable for both temporary and permanent installations.
- Solar panels: Strut channels serve as a base for mounting solar panels on rooftops or open fields. They hold the panels firmly in place and allow angle adjustments as needed.
- Warehouses and factories: In industrial environments, strut channels help create heavy-duty shelving, workstations, machine guards, and cable supports. Their durability ensures long-term use in tough conditions.
Conclusion
Installing a Unistrut channel system is a straightforward task when done right. It’s a strong, flexible, and reusable solution for mounting all kinds of equipment and systems. By following proper steps measuring, preparing, mounting, and securing you can build a safe and reliable structure that meets your needs. Always check for level and tightness, and you’ll get professional results even if you’re a beginner.
