Unistrut P1100

Unistrut P1100 - 1-5/8" x 1-5/8", 14 Gauge, Stainless Steel Solid Strut Channel

At Robexstrut, we pride ourselves on being a trusted dealer and supplier of top-quality strut channel systems, including the renowned Unistrut P1100. With industry certifications and a commitment to excellence, we ensure reliable products for diverse applications. Made from high-quality steel, it is coated for corrosion resistance, ensuring durability in demanding environments. Its modular design makes it ideal for creating support systems, such as cable trays, pipe racks and mounting frames without the need for welding or drilling. The Unistrut P1100, measuring 1 ⅝” wide x 1 ⅝” tall x 14 gauge, is a versatile, durable channel offering flexibility and ease of installation in various projects such as construction and industrial projects for supporting mechanical, electrical and plumbing installations.

Contact Robexstrut today to get high-quality Unistrut P1100 channels for your next project!

Supplier of Unistrut P1100 at low price in India.

Unistrut P1100 Specification

Standard Lengths:

Up to 12 meters in length.

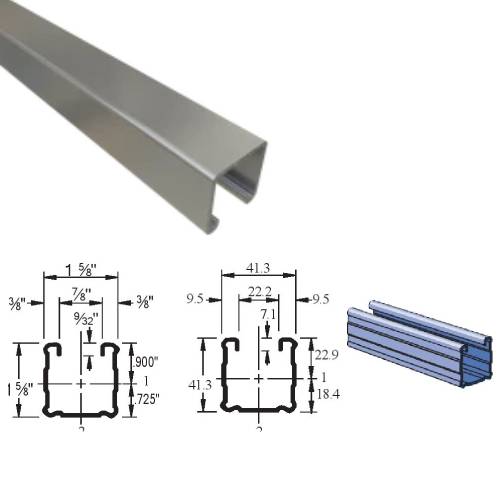

Dimensions

Width: 1-5/8 inches (41 mm)
Height : 1-5/8″ (41 mm)
Wall Thickness: 14 Gauge Nominal Thickness .075″ (1.9mm)
Allowable Moment 4,060 In-Lbs (460 N•m)

Weight :

Wt/100 Ft: 142 Lbs (211 kg/100 m)

Material and Finishes:

Stainless Steel Options: Type 304 and Type 316, conforming to ASTM A240
Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
Hot Dip Galvanized (HG): Conforms to ASTM A1011 SS GR 33, finish conforms to ASTM A123.
Perma-Green (GR): E-Coat finish, conforms to ASTM A1011 SS GR 33.
Plain (PL): Low carbon steel, conforms to ASTM A1011 SS GR 33.

Buy Stainless Steel Unistrut P1100 in 304/316 Type, Top P1100 Strut Channel Dealers in Mumbai

Features of Unistrut P1100

Made from high-strength steel for maximum durability.
Undergoes testing to meet industry standards for quality and performance.
U-shaped design that provides exceptional strength and stability.
Quick and easy installation, reducing project downtime.

Request a quote for bulk orders of Unistrut P1100 - reliable solutions shipped worldwide!

P1100 Unistrut Load Capacity

Bearing Loads for P1100 Unistrut Channel


Channel	Bearing Length 1 ⅝" (41 mm) Maximum Allowable Loads Lbs (kN)	Bearing Length 1 ⅝" (41 mm) Maximum Allowable Loads Lbs (kN)	Bearing Length 3 ¼" (82 mm) Maximum Allowable Loads Lbs (kN)
P1100	3,500 15.57	1,700 7.56	4,000 17.79

P1100 - Beam Loading (Imperial)

Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Uniform Loading at Deflection
Span In	Max Allowable Uniform Load Lbs	Defl. at Uniform Load In	Span/180 Lbs	Span/240 Lbs	Span/360 Lbs
24	1,350	0.06	1,350	1,350	1,350
36	900	0.13	900	900	700
48	680	0.23	680	590	400
60	540	0.36	510	380	250
72	450	0.51	350	260	180
84	390	0.70	260	190	130
96	340	0.92	200	150	100
108	300	1.15	160	120	80
120	270	1.42	130	90	60
144	230	2.09	90	70	40
168	190	2.75	60	50	30
192	170	3.67	50	40	NR
216	150	4.61	40	30	NR
240	140	5.90	30	NR	NR

P1100 - Beam Loading (Metric)

Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Uniform Loading at Deflection
Span MM	Max Allowable Uniform Load kN	Defl. at Uniform Load MM	Span/180 kN	Span/240 kN	Span/360 kN
600	6.1	1	6.1	6.1	6.1
750	4.9	2	4.9	4.9	4.7
1,000	3.7	4	3.7	3.7	2.6
1,250	2.9	6	2.9	2.5	1.7
1,500	2.4	9	2.3	1.7	1.2
1,750	2.1	12	1.7	1.3	0.8
2,000	1.8	15	1.3	1.0	0.7
2,500	1.5	24	0.8	0.6	0.4
3,000	1.2	36	0.6	0.4	0.3
3,500	1.1	49	0.4	0.3	0.2
4,000	0.9	64	0.3	0.3	0.2
4,500	0.8	77	0.3	0.2	0.1
5,000	0.8	100	0.2	0.2	NR
6,000	0.6	143	0.1	NR	NR

P1100 - Column Loading (Imperial)

Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	Maximum Column Load Applied at C.G.
Unbraced Height In	Maxiumum Allowable Load at Slot Face Lbs	K = 0.65 Lbs	K = 0.80 Lbs	K = 1.0 Lbs	K = 1.2 Lbs
24	2,800	8,040	7,330	6,360	5,430
36	2,410	6,480	5,430	4,190	3,210
48	1,940	4,990	3,830	2,760	2,160
60	1,550	3,740	2,760	2,050	1,640
72	1,290	2,860	2,160	1,640	1,320
84	1,100	2,310	1,780	1,370	1,110
96	950	1,950	1,520	1,180	950
108	840	1,690	1,320	1,030	**
120	760	1,490	1,180	**	**
144	630	1,210	950	**	**

P1100 - Column Loading (Metric)

Unbraced Height (mm)	Maximum Allowable Load at Slot Face (kN)	Maximum Column Load Applied at C.G.
Unbraced Height (mm)	Maximum Allowable Load at Slot Face (kN)	K = 0.65 (kN)	K = 0.80 (kN)	K = 1.0 (kN)	K = 1.2 (kN)
600	12.5	35.9	32.9	28.6	24.5
750	11.8	32.6	28.6	23.5	19.0
1,000	10.1	26.9	22.0	16.4	12.5
1,250	8.5	21.6	16.4	11.8	9.3
1,500	7.0	17.0	12.5	9.0	7.4
1,750	6.0	13.5	10.1	7.7	6.2
2,000	5.2	11.2	8.6	6.3	4.7
2,250	4.6	9.6	7.4	5.3	4.4
2,500	4.1	8.4	6.6	5.1	**
2,750	3.7	7.5	5.9	4.5	**

P1100 - Elements of Section (Imperial)

Parameter	1100
Area of Section	0.418	In²
Axis 1-1
Moment of Inertia (I)	0.145	In⁴
Section Modulus (S)	0.162	In³
Radius of Gyration (r)	0.589	In
Axis 2-2
Moment of Inertia (I)	0.176	In⁴
Section Modulus (S)	0.217	In³
Radius of Gyration (r)	0.650	In

P1100 - Elements of Section (Metric)

Parameter	P1100
Area of Section	2.69	cm²
Axis 1-1
Moment of Inertia (I)	6.03	cm⁴
Section Modulus (S)	2.65	cm³
Radius of Gyration (r)	1.50	cm
Axis 2-2
Moment of Inertia (I)	7.34	cm⁴
Section Modulus (S)	3.56	cm³
Radius of Gyration (r)	1.65	cm
