- Unistrut Channel
- Unistrut Sizes
Unistrut Sizes
Unistrut Channel Sizes
1-5/8" Channel
Standard and Deep Strut
- P1000 Series (12 ga): 1-5/8″ x 1-5/8″
- P1100 Series (14 ga): 1-5/8″ x 1-5/8″
- P2000 Series (16 ga): 1-5/8″ x 1-5/8″
- P3000 Series (12 ga): 1-5/8″ x 1-3/8″
- P5000 Series (12 ga): 1-5/8″ x 3-1/4″
- P5500 Series (12 ga): 1-5/8″ x 2-7/16″
Shallow Strut
- P3300 Series (12 ga): 1-5/8″ x 7/8″
- P4000 Series (16 ga): 1-5/8″ x 13/16″
- P4100 Series (14 ga): 1-5/8″ x 13/16″
Material
- Plain Steel: 12 ga, 14 ga, and 16 ga ASTM A1011 SS GR 33
- Pre-Galvanized Steel: 12 ga, 14 ga, and 16 ga ASTM A653 GR 33
Finishes
- Perma Green III (GR)
- Pre-Galvanized (PG), conforming to ASTM A653 G90
- Hot-Dipped Galvanized (HG), conforming to ASTM A123
- Plain (PL)
Lengths
- 12 meters
- * Some channels may be available in 5 Ft lengths
- ** Channel Cut to Length upon request. Additional fees apply

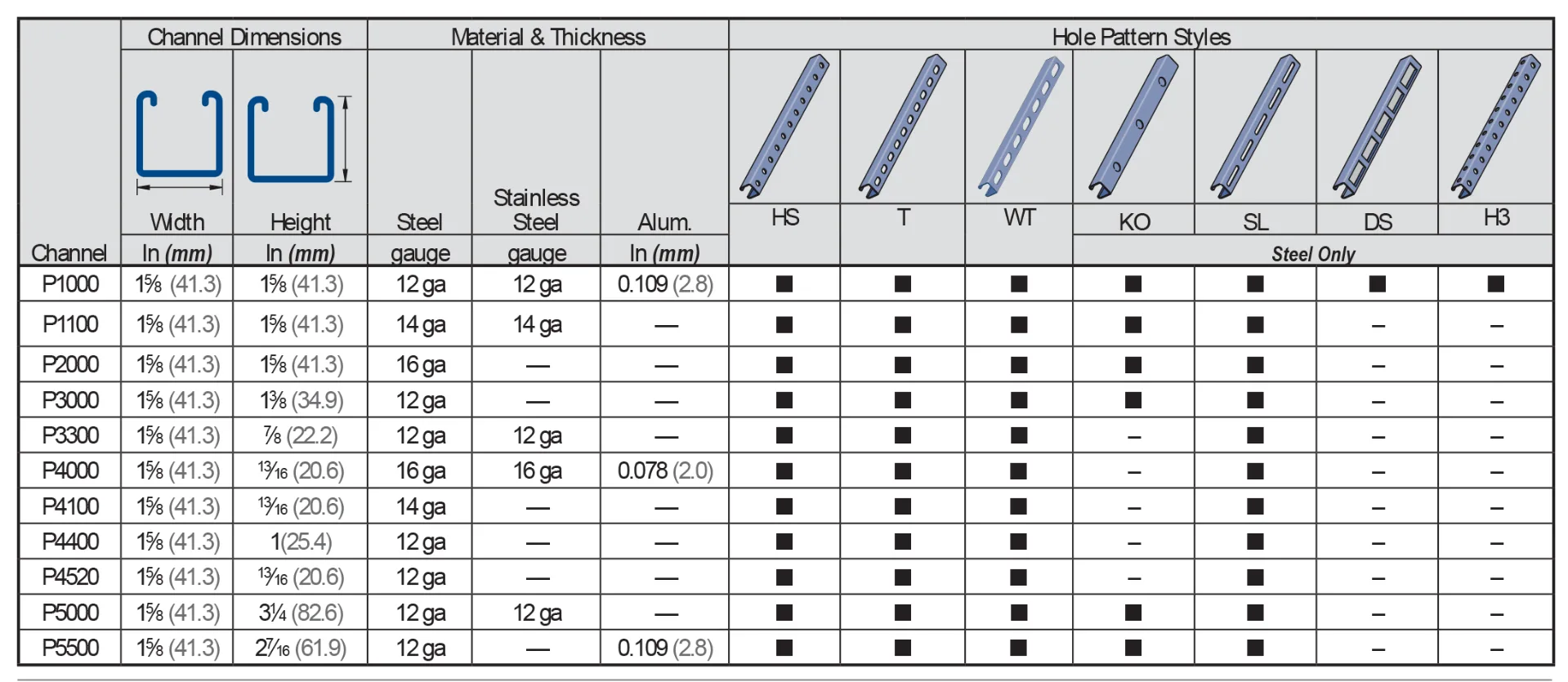

Channel Selection Chart: Unsitrut Dimensions for 1-5/8" Wide Channels
P1000 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P1000 | Solid Channel | 1-5/8″ x 1-5/8″ | 12 ga |
| P1000T | Slotted Channel | 1-5/8″ x 1-5/8″ | 12 ga |
| P1000WT | Wide Slotted Channel | 1-5/8″ x 1-5/8″ | 12 ga |
| P1000HS | Round Holes (1 Side) | 1-5/8″ x 1-5/8″ | 12 ga |
| P1000H3 | Round Holes (3 Sides) | 1-5/8″ x 1-5/8″ | 12 ga |
| P1000SL | Slots | 1-5/8″ x 1-5/8″ | 12 ga |
| P1000DS | Double Slots | 1-5/8″ x 1-5/8″ | 12 ga |
| P1000KO | Knock Out Holes | 1-5/8″ x 1-5/8″ | 12 ga |
| P1001 | Double Strut | 1-5/8″ x 3-1/4″ | 12 ga |
| P1001T | Slotted Double Strut | 1-5/8″ x 3-1/4″ | 12 ga |
| P1001A | Double Strut A Combination | 1-5/8″ x 3-1/4″ | 12 ga |
| P1001B | Double Strut B Combination | 1-5/8″ x 3-1/4″ | 12 ga |
| P1001C | Double Strut C Combination | 1-5/8″ x 3-1/4″ | 12 ga |
| P10013 | Triple Strut Combination | 1-5/8″ x 4-7/8″ | 12 ga |
| P1001A3 | Triple Strut A Combination | 1-5/8″ x 4-7/8″ | 12 ga |
| P1001B3 | Triple Strut B Combination | 1-5/8″ x 4-7/8″ | 12 ga |
| P1001D3 | Triple Strut D Combination | 3-1/4″ x 3-1/4″ | 12 ga |
| P1003 | Wide Plate Channel | 1-47/64″ x 4-1/32″ | 12 ga |
| P1001C41 | Quadruple Strut Combination | 3-1/4″ x 3-1/4″ | 12 ga |
| P1001C3 | Triple Strut C Combination | 3-1/4″ x 3-1/4″ | 12 ga |
| P1004A | Triple Plated Channel | 1-27/32″ x 4-7/8″ | 12 ga |
P1100 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P1100 | Solid Channel | 1-5/8″ x 1-5/8″ | 14 ga |
| P1100T | Slotted Channel | 1-5/8″ x 1-5/8″ | 14 ga |
| P1100HS | Round Holes (1 Side) | 1-5/8″ x 1-5/8″ | 14 ga |
| P1100SL | Slots | 1-5/8″ x 1-5/8″ | 14 ga |
| P1100KO | Knock Out Holes | 1-5/8″ x 1-5/8″ | 14 ga |
| P1101 | Double Strut | 1-5/8″ x 3-1/4″ | 14 ga |
| P1101A | Double Strut A Combination | 1-5/8″ x 3-1/4″ | 14 ga |
| P1101B | Double Strut B Combination | 1-5/8″ x 3-1/4″ | 14 ga |
| P1101C | Double Strut C Combination | 1-5/8″ x 3-1/4″ | 14 ga |
P2000 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P2000 | Solid Channel | 1-5/8″ x 1-5/8″ | 16 ga |
| P2000T | Slotted Channel | 1-5/8″ x 1-5/8″ | 16 ga |
| P2000HS | Round Holes (1 Side) | 1-5/8″ x 1-5/8″ | 16 ga |
| P2000SL | Slots | 1-5/8″ x 1-5/8″ | 16 ga |
| P2000KO | Knock Out Holes | 1-5/8″ x 1-5/8″ | 16 ga |
| P2001 | Double Strut | 1-5/8″ x 3-1/4″ | 16 ga |
| P2001A | Double Strut A Combination | 1-5/8″ x 3-1/4″ | 16 ga |
| P2001B | Double Strut B Combination | 1-5/8″ x 3-1/4″ | 16 ga |
| P2001C | Double Strut C Combination | 1-5/8″ x 3-1/4″ | 16 ga |
P3000 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P3000 | Solid Channel | 1-5/8″ x 1-3/8″ | 16 ga |
| P3000T | Slotted Channel | 1-5/8″ x 1-3/8″ | 16 ga |
| P3000HS | Round Holes (1 Side) | 1-5/8″ x 1-3/8″ | 16 ga |
| P3000SL | Slots | 1-5/8″ x 1-3/8″ | 16 ga |
| P3000KO | Knock Out Holes | 1-5/8″ x 1-3/8″ | 16 ga |
| P3001 | Double Strut | 1-5/8″ x 2-3/4″ | 16 ga |
P3300 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P3300 | Solid Shallow Strut | 1-5/8″ x 7/8″ | 16 ga |
| P3300T | Slotted Shallow Strut | 1-5/8″ x 7/8″ | 16 ga |
| P3300HS | Shallow Strut Round Holes (1 Side) | 1-5/8″ x 7/8″ | 16 ga |
| P3300SL | Shallow Strut Slots | 1-5/8″ x 7/8″ | 16 ga |
| P3301 | Double Shallow Strut | 1-5/8″ x 1-3/4″ | 16 ga |
P4000 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P4000 | Solid Shallow Strut | 1-5/8″ x 13/16″ | 16 ga |
| P4000T | Slotted Shallow Strut | 1-5/8″ x 13/16″ | 16 ga |
| P4000HS | Shallow Strut Round Holes (1 Side) | 1-5/8″ x 13/16″ | 16 ga |
| P4000SL | Shallow Strut Slots | 1-5/8″ x 13/16″ | 16 ga |
| P4001 | Double Shallow Strut | 1-5/8″ x 1-5/8″ | 16 ga |
| P4003 | Triple Shallow Strut Combination | 1-5/8″ x 2-7/16″ | 16 ga |
| P4004 | Quadruple Shallow Strut Combination | 1-5/8″ x 3-1/4″ | 16 ga |
P4100 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P4100 | Solid Shallow Strut | 1-5/8″ x 13/16″ | 14 ga |
| P4100T | Slotted Shallow Strut | 1-5/8″ x 13/16″ | 14 ga |
| P4100HS | Shallow Strut Round Holes (1 Side) | 1-5/8″ x 13/16″ | 14 ga |
| P4100SL | Shallow Strut Slots | 1-5/8″ x 13/16″ | 14 ga |
| P4101 | Double Shallow Strut | 1-5/8″ x 1-5/8″ | 14 ga |
P5000 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P5000 | Solid Deep Strut | 1-5/8″ x 3-1/4″ | 12 ga |
| P5000T | SlottedDeep Strut | 1-5/8″ x 3-1/4″ | 12 ga |
| P5000HS | Deep StrutRound Holes (1 Side) | 1-5/8″ x 3-1/4″ | 12 ga |
| P5000SL | Deep Strut Slots | 1-5/8″ x 3-1/4″ | 12 ga |
| P5000KO | Deep Strut Knock Out Holes | 1-5/8″ x 3-1/4″ | 12 ga |
| P5001 | Double Deep Strut | 1-5/8″ x 6-1/2″ | 12 ga |
P5500 Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P5500 | Solid Deep Strut | 1-5/8″ x 2-7/16″ | 14 ga |
| P5500T | Slotted Deep Strut | 1-5/8″ x 2-7/16″ | 14 ga |
| P5500HS | Deep Strut Round Holes (1 Side) | 1-5/8″ x 2-7/16″ | 14 ga |
| P5500SL | Deep Strut Slots | 1-5/8″ x 2-7/16″ | 14 ga |
| P5501 | Double Deep Strut | 1-5/8″ x 4-7/8″ | 14 ga |
1-1/2" Channel: P9900 Channels
Standard and Deep Strut
- P9900 Series (12 ga): 1-1/2″ x 1-1/2″
- P9902 Series (12 ga): 1-1/2″ x 3″
Shallow Strut
- P9906 Series (12 ga): 1-1/2″ x 3/4″
Material
- Steel: 12 ga, and 14 ga conforming to ASTM A1011 SS GR 33
- Pre-Galvanized Steel: 12 ga, 14 ga, and 16 ga ASTM A653 GR 33
Finishes
- Zinc Dichromate gold protective finish (ZD), conforming to ASTM B633, SC Type II
- Hot-Dipped Galvanized (HG), conforming to ASTM A123
Lengths
- 12 meters
- ** Channel Cut to Length upon request. Additional fees apply
1-1/2" Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P9900 | Solid Channel | 1-1/2″ x 1-1/2″ | 12 ga |
| P9905H | Round Holes (1 Side) | 1-1/2″ x 1-1/2″ | 12 ga |
| P9995H3 | Round Holes (3 Sides) | 1-1/2″ x 1-1/2″ | 12 ga |
| P9906 | Solid Shallow Srut | 1-1/2″ x 3/4″ | 12 ga |
| P9907H | Shallow Srut Round Holes (1 Side) | 1-1/2″ x 3/4″ | 12 ga |
| P9902 | Deep Strut | 1-1/2″ x 3″ | 12 ga |
| P9903H | Deep Strut Round Holes (1 Side) | 1-1/2″ x 3″ | 12 ga |
1-1/4" Channel: "A" Series Channels
Standard and Deep Strut
- A1000 Series (14 ga): 1-1/4″ x 1-1/4″
- A5000 Series (14 ga): 1-1/4″ x 2-1/2″
Shallow Strut
- A3300 Series (14 ga): 1-1/4″ x 3/4″
- A4000 Series (19 ga): 1-1/4″ x 1-1/4″
Material
Plain Steel:- 14 ga conforming to ASTM A1011 SS GR 33
- 19 gaconforming to ASTM A1008
- 14 ga conforming to ASTM A653 GR 33
- 19 gaconforming to ASTM A653 GR 33
Finishes
- Perma Green III (GR)
- Pre-Galvanized (PG), conforming to ASTM A653 G90
- Plain (PL)
Lengths
- 12 meters
- ** Channel Cut to Length upon request. Additional fees apply
1-1/4" Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| A1000 | Solid Channel | 1-1/4″ x 1-1/4″ | 14 ga |
| A1001 | Double Strut | 1-1/4″ x 2-1/2″ | 14 ga |
| A1001A | Double Strut A Combination | 1-1/4″ x 2-1/2″ | 14 ga |
| A1001B | Double Strut B Combination | 1-1/4″ x 2-1/2″ | 14 ga |
| A1001C | Double Strut C Combination | 1-1/4″ x 2-1/2″ | 14 ga |
| A3300 | Solid Shallow Strut | 1-1/4″ x 3/4″ | 14 ga |
| A3301 | Double Shallow Strut | 1-1/4″ x 1-1/2 | 14 ga |
| A4000 | Solid Shallow Strut | 1-1/4″ x 5/8″ | 19 ga |
| A4001 | Double Shallow Strut | 1-1/4″ x 1-1/4″ | 19 ga |
| A5000 | Deep Strut | 1-1/4″ x 2-1/2″ | 14 ga |
13/16" Channel: P6000 & P7000 Series Channels
Standard and Deep Strut
- P6000 Series (19 ga): 13/16″ x 13/16″
Shallow Strut
- P7000 Series (19 ga): 13/16″ x 13/32″
Material
Plain Steel:- 19 gaconforming to ASTM A1008
- 19 gaconforming to ASTM A653 GR 33
Finishes
- Perma Green III (GR)
- Electro-Galvanized (EG)
- Pre-Galvanized (PG), conforming to ASTM A653 G90
- Plain (PL)
Lengths
- 12 meters
- ** Channel Cut to Length upon request. Additional fees apply
13/16" Series Channels
| Channel | Description | Channel Dimensions | Gauge |
| P6000 | Solid Channel | 13/16″ x 13/16″ | 14 ga |
| P6001 | Double Strut | 13/16″ x 1-5/8″ | 14 ga |
| P6001A | Double Strut A Combination | 13/16″ x 1-5/8″ | 14 ga |
| P6001B | Double Strut B Combination | 13/16″ x 1-5/8″ | 14 ga |
| P6001C | Double Strut C Combination | 13/16″ x 1-5/8″ | 14 ga |
| P7000 | Solid Shallow Strut | 13/16″ x 13/32″ | 14 ga |
| P70001 | Double Shallow Strut | 13/16″ x 13/16″ | 14 ga |
