Unistrut P2265

Unistrut P2265 - 4-Hole, 45 Degree Outside Angle Fitting

Robexstrut is a trusted dealer and supplier specializing in high-quality strut systems and components. We provide reliable solutions for various construction and industrial applications. Unistrut P2265, a 4-hole outside angle fitting designed for use with 1-5/8″ Unistrut channel. It allows you to attach sections of the Unistrut Channel at a 45 degree angle. The fitting is available with either a Perma-Green, Electrogalvanized & 304 Stainless Steel finish. The Unistrut P2265 channel angular fitting measures approximately 3-1/2″ x 3-11/16″, with thickness of 1/4 Inch and width of 1-5/8 Inch that adhere to Unistrut standards. It ensures seamless installation in multiple systems, contributing to efficient and secure structural support.

Looking for reliable Unistrut solutions? Contact us today and enhance your structural projects with Unistrut P2265!

Buy P2265 Unistrut 45 Degree Angle Bracket at Best Price, P2265 Unistrut Stainless Steel 4-Hole 45 Degree Outside Channel Angle Supplier in India

Unistrut P2265 Specification

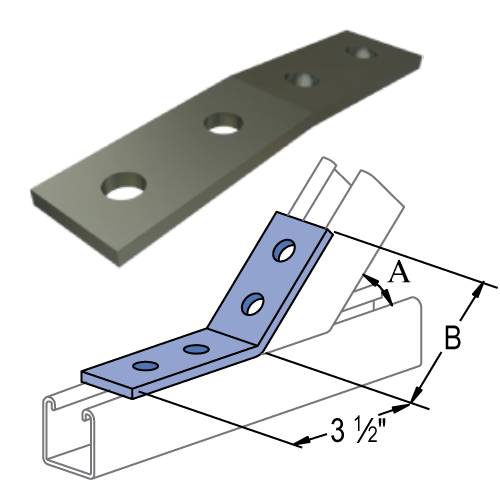

Part Number	A Degree (rad)	“B” In (mm)
P2265	45° 0.79	3 11⁄16 93.7

Mounting:

4-Hole.

Measurements :

A = 45°
B = 3-11/16″

Standard Dimensions :

Hole Diameter: 9/16″ (14mm)
Hole Spacing (From End): 13/16″ (21mm)
Hole Spacing (On-Center): 1 7/8″ (48mm)
Width: 1 5/8″ (41mm)
Thickness: 1/4″ (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45

Material and Finishes :

Stainless Steel: Type 304: SS, Type 316: ST, conforming to ASTM A240
Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
Hot Dip Galvanized (HG): Conforms to ASTM A1011 SS GR 33, finish conforms to ASTM A123.
Perma-Green (GR): E-Coat finish, conforms to ASTM A1011 SS GR 33.
Plain (PL): Low carbon steel, conforms to ASTM A1011 SS GR 33
