Unistrut P1000
Unistrut P1000 - 1-5/8" x 1-5/8", 12 Gauge Strut Channel, Stainless Steel
Robexstrut is a leading supplier of high-quality strut channel systems, renowned for reliability and excellence. Certified and trusted, we specialize in delivering premium products like Unistrut P1000 which is versatile for channel framing. P1000 Strut, is a versatile U-shaped steel channel (1 ⅝” x 1 ⅝”, 12 ga) with inward-facing lips. Unistrut P1000 are used for structural support and modular framing. Available in plain steel, pre-galvanized, hot-dip galvanized, or powder-coated finishes to ensure durability and corrosion resistance.
- Chief Sourcing Partner for P1000 Stainless Steel Unistrut
- Trusted Supplier of Unistrut P1000 Channel in India
- Stockist of Stainless Steel P1000 Strut in Mumbai
- P1000 Unistrut - 1 ⅝" Framing System
Get in touch today to explore our range of Unistrut P1000 metal channels designed to meet your needs!
Unistrut P1000 Supplier in India, P1000 Unistrut Distributors, Get the latest P1000 Unistrut Price – Contact us now!
Unistrut P1000 Specification
Standard Lengths:
- Up to 12 meters in length.

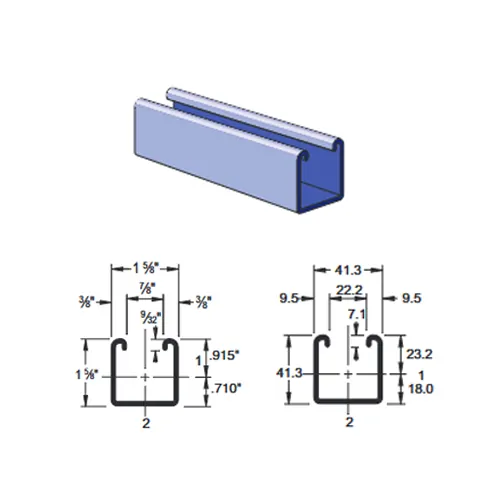

Unistrut P1000 Dimensions :
- Width: 1-5/8 inches (41 mm)
- Height :1-5/8 inches (41 mm)
- Wall Thickness: 12 Gauge Nominal Thickness .105″ (2.7mm)
- Allowable Moment 5,070 In-Lbs (570 N•m)
Unistrut P1000 Weight :
Wt/100 Ft:189 Lbs (281 kg/100 m)
Material and Finishes :
- Stainless Steel : Type 304: SS, Type 316: ST, conforming to ASTM A240
- Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
- Hot Dip Galvanized (HG): Conforms to ASTM A1011 SS GR 33, finish conforms to ASTM A123.
- Perma-Green (GR): E-Coat finish, conforms to ASTM A1011 SS GR 33.
- Plain (PL): Low carbon steel, conforms to ASTM A1011 SS GR 33.
Grade 316 Stainless Steel Unistrut Channel P1000 Stock, Exporter of SS 304 P1000 Slotted Unistrut
Features & Applications of Unistrut P1000
- High tensile strength for robust support.
- Pre-drilled holes for easy installation.
- Corrosion-resistant finish for durability in harsh environments.
- Ideal for electrical supports, HVAC installations, and shelving systems.
P1000 Unistrut Load Capacity
Bearing Loads for P1000 Unistrut Channel
 |
 |
 |
|
| Channel | Bearing Length 1 5/8" (41 mm) Maximum Allowable Loads Lbs (kN) |
Bearing Length 1 5/8" (41 mm) Maximum Allowable Loads Lbs (kN) (in) |
Bearing Length 3 1/4" (82 mm) Maximum Allowable Loads Lbs (kN) |
| P1000 | 6,700 29.80 |
3,100 13.79 |
7,500 34.25 |
P1000 - Beam Loading (Imperial)
| Span (in) | Max Allowable Uniform Load (lbs) | Defl at Uniform load(in) | Uniform Loading at Deflection | ||
| Span/180 (lbs) | Span/240 (lbs) | Span/360 (lbs) | |||
|
24 |
1,690 |
0.06 |
1,690 |
1,690 |
1,690 |
|
36 |
1,130 |
0.13 |
1,130 |
1,130 |
900 |
|
48 |
850 |
0.22 |
850 |
760 |
500 |
|
60 |
680 |
0.35 |
650 |
480 |
320 |
|
72 |
560 |
0.50 |
450 |
340 |
220 |
|
84 |
480 |
0.68 |
330 |
250 |
160 |
|
96 |
420 |
0.89 |
250 |
190 |
130 |
|
108 |
380 |
1.14 |
200 |
150 |
100 |
|
120 |
340 |
1.40 |
160 |
120 |
80 |
|
144 |
280 |
2.00 |
110 |
80 |
60 |
|
168 |
240 |
2.72 |
80 |
60 |
40 |
|
192 |
210 |
3.55 |
60 |
50 |
NR |
|
216 |
190 |
4.58 |
50 |
40 |
NR |
|
240 |
170 |
5.62 |
40 |
NR |
NR |
P1000 - Beam Loading (Metric)
| Span mm | Max Allow. Uniform Load kn | Deflection at Uniform Load mm | Uniform Loading at Deflection | ||
| Span/180 kn | Span/240 kn | Span/360 kn | |||
| 600 | 7.6 | 1 | 7.6 | 7.6 | 7.6 |
| 750 | 6.1 | 2 | 6.1 | 6.1 | 5.9 |
| 1,000 | 4.6 | 4 | 4.6 | 4.6 | 3.3 |
| 1,250 | 3.6 | 6 | 3.6 | 3.2 | 2.1 |
| 1,500 | 3.1 | 9 | 3.0 | 2.2 | 1.5 |
| 1,750 | 2.6 | 12 | 2.2 | 1.6 | 1.1 |
| 2,000 | 2.3 | 15 | 1.6 | 1.2 | 0.8 |
| 2,500 | 1.8 | 24 | 1.1 | 0.8 | 0.5 |
| 3,000 | 1.5 | 34 | 0.8 | 0.5 | 0.4 |
| 3,500 | 1.3 | 46 | 0.5 | 0.4 | 0.3 |
| 4,000 | 1.2 | 62 | 0.4 | 0.3 | 0.2 |
| 4,500 | 1.0 | 78 | 0.3 | 0.3 | 0.2 |
| 5,000 | 0.9 | 97 | 0.3 | 0.2 | NR |
| 6,000 | 0.8 | 136 | 0.2 | NR | NR |
P1000 - Column Loading (Imperial)
| P1000 – COLUMN LOADING | Maximum Column Load Applied at C.G. | ||||
| Unbraced Height (In) | Max Allowable Load at Slot Face (Lbs) | K = 0.65 (Lbs) |
K = 0.80 (Lbs) |
K = 1.0 (Lbs) |
K = 1.2 (Lbs) |
| 24 | 3,550 | 10,740 | 9,890 | 8,770 | 7,740 |
| 36 | 3,190 | 8,910 | 7,740 | 6,390 | 5,310 |
| 48 | 2,770 | 7,260 | 6,010 | 4,690 | 3,800 |
| 60 | 2,380 | 5,910 | 4,690 | 3,630 | 2,960 |
| 72 | 2,080 | 4,840 | 3,800 | 2,960 | 2,400 |
| 84 | 1,860 | 4,040 | 3,200 | 2,480 | 1,980 |
| 96 | 1,670 | 3,480 | 2,750 | 2,110 | 1,660 |
| 108 | 1,510 | 3,050 | 2,400 | 1,810 | ** |
| 120 | 1,380 | 2,700 | 2,110 | ** | ** |
| 144 | 1,150 | 2,180 | 1,660 | ** | ** |
,
P1000 - Column Loading (Metric)
| P1000 – COLUMN LOADING | Maximum Column Load Applied at C.G. | ||||
| Unbraced Height (In) | Max Allowable Load at Slot Face (Lbs) | K = 0.65 (Lbs) | K = 0.80 (Lbs) | K = 1.0 (Lbs) | K = 1.2 (Lbs) |
| 600 | 15.8 | 48.0 | 44.3 | 39.4 | 34.8 |
| 750 | 15.2 | 44.0 | 39.4 | 33.8 | 28.9 |
| 1,000 | 13.7 | 37.5 | 32.0 | 26.1 | 21.3 |
| 1,250 | 12.1 | 31.6 | 26.1 | 20.3 | 16.5 |
| 1,500 | 10.7 | 26.7 | 21.3 | 16.5 | 13.4 |
| 1,750 | 9.6 | 22.7 | 17.8 | 13.8 | 11.3 |
| 2,000 | 8.7 | 19.3 | 15.3 | 11.9 | 9.6 |
| 2,250 | 7.9 | 16.9 | 13.4 | 10.4 | 8.2 |
| 2,500 | 7.2 | 15.0 | 11.9 | 9.1 | ** |
| 2,750 | 6.7 | 13.5 | 10.6 | 8.1 | ** |
P1000 - Elements of Section (Imperial)
| Parameter | P1000 | |
|---|---|---|
| Area of Section (A) | 0.555 | in² |
| Axis 1-1 | ||
| Moment of Inertia (I) | 0.185 | in⁴ |
| Section Modulus (S) | 0.202 | in³ |
| Radius of Gyration (r) | 0.577 | in |
| Axis 2-2 | ||
| Moment of Inertia (I) | 0.236 | in⁴ |
| Section Modulus (S) | 0.290 | in³ |
| Radius of Gyration (r) | 0.651 | in |
P1000 - Elements of Section (Metric)
| Parameter | P1000 | |
|---|---|---|
| Area of Section (A) | 3.58 | cm² |
| Axis 1-1 | ||
| Moment of Inertia (I) | 7.68 | cm⁴ |
| Section Modulus (S) | 3.30 | cm³ |
| Radius of Gyration (r) | 1.46 | cm |
| Axis 2-2 | ||
| Moment of Inertia (I) | 9.80 | cm⁴ |
| Section Modulus (S) | 4.75 | cm³ |
| Radius of Gyration (r) | 1.65 | cm |
Unistrut P1000 Series
Unistrut P1000DS
P1000DS : 1-5/8″ x 1-5/8, 12 Gauge Strut Channel, Double Slots
Slots are 2-3
⁄ 4 ” (69.9) x 7 ⁄ 8 ” (22.2)
3-1⁄ 2 ” (88.9) on Center
Pipe Clamps can be
Mounted on Both Sides
Wt/100 Ft: 173 Lbs (257 kg/100 m)
Unistrut P1000H3
P1000H3 : 1-5/8″ x 1-5/8, 12 gauge, strut channel with round holes on all three sides
9⁄ 16 ” (14.3) Dia. Holes
1 7 ⁄ 8 ” (47.6) on Center
Wt/100 Ft: 175 Lbs (260 kg/100 m)
Unistrut P1000HS
P1000HS : 1-5/8″ x 1-5/8, 12 gauge, strut channel with round holes on the back side
9⁄ 16 ” (14.3) Dia. Holes
1 7 ⁄ 8 ” (47.6) on Center
Wt/100 Ft: 190 Lbs (283 kg/100 m)
Unistrut P1000KO
P1000KO: 1-5/8″ x 1-5/8″, 12 gauge, strut channel with knock outs
7⁄8″ (22.2) Knockouts
6″ (152.4) on Center
Wt/100 Ft:185 Lbs (275 kg/100 m)
Unistrut P1000SL
P1000SL : 1-5/8″ x 1-5/8″, 12 Gauge, Metal Framing Strut, Long Slots
Slots are
3″ (76.2) x 13 ⁄ 32 ” (10.3)
4″ (101.6) on Center
Wt/100 Ft: 185 Lbs (275 kg/100 m)
Unistrut P1000T
P1000T : 1-5 / 8″ x 1-5 / 8″ , 12 Gauge , Slotted Strut Channel
Slots are
1-1 ⁄ 8 ” (28.6) x 9 ⁄ 16 ” (14.3)
2″ (50.8) on Center
Wt/100 Ft: 185 Lbs (275 kg/100 m)
Unistrut P1000WT
P1000WT :1-5/8″ x 1-5/8″, 12 Gauge Strut Channel, Wide Slots
Slots are
2″ (50.8) x 11⁄16 ” (17.5)
3″ (76.2) on Center
Wt/100 Ft: 185 Lbs (275 kg/100 m)
Unistrut P1001
P1001 : 1-5/8″ x 3-1/4″ (41.3 mm x 82.6 mm), 12 Ga, Back-to-Back Strut Channel, Solid
Wt/100 Ft: 378 Lbs (562 kg/100 m)
Allowable Moment 14,360 In-Lbs (1,620 N•m)
12 Gauge Nominal Thickness .105″ (2.7mm)
Unistrut P1003
P1003 : 1-5/8″ x 1-5/8″, 12 Gauge, Strut Channel with 4 1/32″ Wide Plate
Wt/100 Ft: 333 Lbs (495 kg/100 m)
Allowable Moment 6,240 In-Lbs (700 N•m)
12 Gauge Nominal Thickness .105″ (2.7mm)
Unistrut P1004A
P1004A : P1004A : 1-27/32″ x 4-7/8″, 12 Gauge Welded Strut Channel, Plates on Each Side
Wt/100 Ft: 668 Lbs (994 kg/100 m)
Allowable Moment 41,970 In-Lbs (4,740 N•m)
12 Gauge Nominal Thickness .105″ (2.7mm)
