Unistrut Cable Tray Support
Unistrut Cable Tray Support Supplier
At Robexstrut, we pride ourselves on being trusted dealers and suppliers of unistrut cable tray support components. Unistrut cable tray supports are essential for managing and organizing electric power, signal, control, instrumentation and communication cables used in power distribution and communication systems. It provides a secure and efficient framework for routing and supporting cables in various industrial and commercial settings. These trays come in versatile sizes, with widths ranging from 50 mm to 900 mm and depths from 15 mm to 50 mm. Additionally, their adjustable design allows for customization to meet specific project requirements, ensuring efficiency and reliability in cable management.
- Chief Sourcing Partner for Unistrut Cable Tray Support
- Trusted Supplier of Unistrut Channel Cable Tray Support in India
- Stockist of Unistrut Basket Tray in Mumbai
Unistrut Cable Tray Support, Unistrut Cable Tray Clamps, Unistrut Ladder Tray, Cable Tray Mounting Support, Clamp for Cable Ladder, Unistrut Cable Tray Supplier in Mumbai
Unistrut Cable Tray Support Specification
Standard Dimensions :
- Hole Diameter: 9/16″ (14mm)
- Hole Spacing (From End): 13/16″ (21mm)
- Hole Spacing (On Center): 1-7/8″ (48mm)
- Width: 1-5/8″ (41mm)
- Thickness: 1/4″ (6mm)
Note :
- When used for mechanical supports, load capacities of brackets and fittings should comply with the American Standard Code for Pressure Piping.
Material :
- Fittings are made from hot-rolled, pickled and oiled steel plates, strip or coil, conforming to ASTM specifications A575, A576, A635, or A36. Also meets physical requirements of ASTM A1011 SS GR 33. Available in stainless steel, aluminum, and fiberglass. Consult factory for ordering info.
Application :
- Illustrations show one application; many other applications possible.
- Channels shown are P1000, 1-5/8″ square (unless otherwise noted).
- Uses 1/2″ x 15/16″ hex head cap screws and 1/2″ nuts (P1010, P4010, P5510) which must be ordered separately.
Dimensions :
- Imperial dimensions are in inches.
- Metric dimensions are in millimeters (unless noted).
Design Load :
- Design load data based on ultimate strength of the connection with a safety factor of 2.5 (unless otherwise noted).
Beam Clamps :
- Designed for W, M, S, HP Shape beams, Standard C, and Miscellaneous MC Channels, Angles, and Structural Tees.
- Must be used in pairs where indicated.
- Standard hardware is EG finish; for optional stainless steel hardware, contact the factory.
Design Bolt Torque:
| BOLT SIZE | 1/4″-20 | 5/16″-18 | 3/8″-16 | 1/2″-13 | 5/8″-11 | 3/4″-10 |
| Rec.Torque Ft/Lbs(N*m) | 6 (8) | 11 (15) | 19 (26) | 50 (68) | 100 (136) | 125 (170) |
| Max Torque Ft/Lbs<N*m) | 7(9) | 15(20) | 25(34) | 70(95) | 125(170) | 150(203) |
Design Set Screw Torque:
| BOLT SIZE | 1/4″-20 | 5/16″-18 | 3/8″-16 | 1/2″-13 | 5/8″-11 | 3/4″-10 |
| Set Screw Torque in Lbs(N*m) | 40 (4) |
60 (7) |
125 (14) |
250 (28) |
400 (45) |
665 (75) |
Features & Applications of Cable Tray Bracket Support:
- Made from high-quality materials for exceptional durability
- Available in pre- or hot-dip galvanized options, with additional finishes on request.
- Tested to meet industry-specific quality and safety standards.
Enhance your cable management system with our unistrut cable tray support. Contact Robexstrut for innovative solutions today!

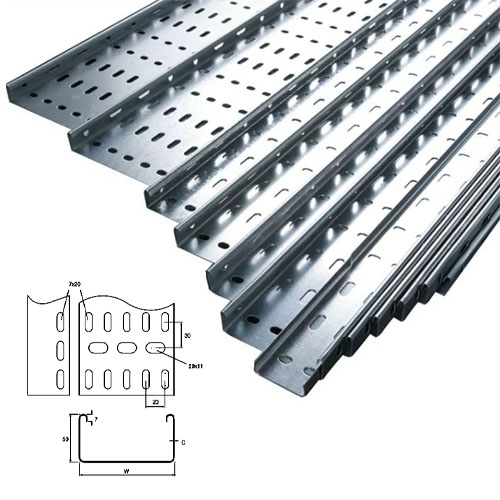

Types of Unistrut Cable Tray

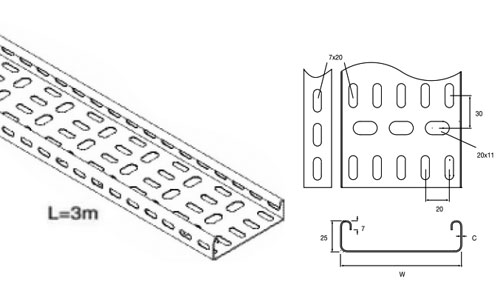

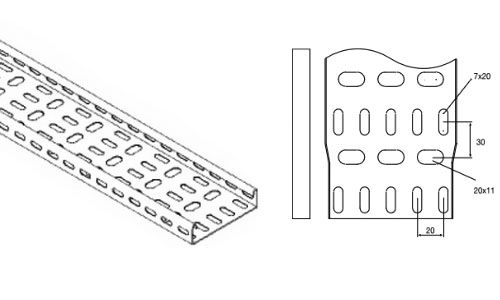

Unistrut Light Duty Cable Tray
- Lightweight for easy installation.
- Complete with a wide range of accessories and fixings to suit.
- Available in 3m lengths with widths ranging from 50mm to 900mm.
- Straights come with a single tapered end for quickly slotting together multiple lengths.
| Size | PG | HG | SS | W (mm) | B (mm) | C (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 50mm x 3m | TULL050/10PG | TULL050/10HG | TULL050/10SS | 50 | 12 | 0.80 | 1.23 |
| 75mm x 3m | TULL075/10PG | TULL075/10HG | TULL075/10SS | 75 | 12 | 0.80 | 1.68 |
| 100mm x 3m | TULL100/10PG | TULL100/10HG | TULL100/10SS | 100 | 12 | 0.80 | 2.13 |
| 150mm x 3m | TULL150/10PG | TULL150/10HG | TULL150/10SS | 150 | 12 | 0.80 | 2.86 |
| 225mm x 3m | TULL225/10PG | TULL225/10HG | TULL225/10SS | 225 | 12 | 0.80 | 3.92 |
| 300mm x 3m | TULL300/15PG | TULL300/15HG | TULL300/15SS | 300 | 18 | 1.20 | 7.98 |
| 450mm x 3m | TULL450/15PG | TULL450/15HG | TULL450/15SS | 450 | 18 | 1.20 | 18.25 |
| 600mm x 3m | TULL600/20PG | TULL600/20HG | TULL600/20SS | 600 | 18 | 1.20 | 30.37 |
| 750mm x 3m | TULL750/20PG | TULL750/20HG | TULL750/20SS | 750 | 18 | 2.00 | 39.45 |
| 900mm x 3m | TULL900/20PG | TULL900/20HG | TULL900/20SS | 900 | 18 | 2.00 | 47.01 |
Unistrut Medium Duty Cable Tray
- Medium-duty multi-purpose steel cable tray, robust for various applications, lightweight for easy handling and installation, and complete with a wide range of accessories and fixings.
- Available in 3m lengths with widths ranging from 50mm to 900mm.
| Size | Part No. PG | Part No. HG | Part No. SS | W (mm) | C (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 50mm x 3m | TUMLT050/10PG | TUMLT050/10HG | TUMLT050/10SS | 50 | 0.80 | 2.02 |
| 75mm x 3m | TUMLT075/10PG | TUMLT075/10HG | TUMLT075/10SS | 75 | 0.80 | 2.48 |
| 100mm x 3m | TUMLT100/10PG | TUMLT100/10HG | TUMLT100/10SS | 100 | 0.80 | 2.93 |
| 150mm x 3m | TUMLT150/10PG | TUMLT150/10HG | TUMLT150/10SS | 150 | 0.80 | 3.72 |
| 225mm x 3m | TUMLT225/10PG | TUMLT225/10HG | TUMLT225/10SS | 225 | 0.80 | 4.97 |
| 300mm x 3m | TUMLT300/15PG | TUMLT300/15HG | TUMLT300/15SS | 300 | 1.20 | 9.13 |
| 450mm x 3m | TUMLT450/15PG | TUMLT450/15HG | TUMLT450/15SS | 450 | 1.20 | 12.82 |
| 600mm x 3m | TUMLT600/15PG | TUMLT600/15HG | TUMLT600/15SS | 600 | 1.20 | 16.5 |
| 750mm x 3m | TUMLT750/20PG | TUMLT750/20HG | TUMLT750/20SS | 750 | 2.00 | 40.75 |
| 900mm x 3m | TUMLT900/20PG | TUMLT900/20HG | TUMLT900/20SS | 900 | 2.00 | 48.13 |

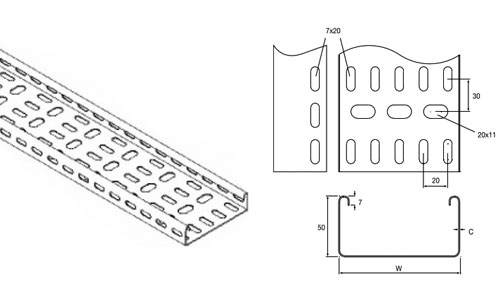

Unistrut Heavy Duty Cable Tray
- Heavy-duty steel cable tray designed to handle heavy cable load requirements, complete with a wide range of accessories and fixings.
- Available in 3m lengths with widths ranging from 75mm to 900mm.
- Extra Heavy Duty tray available in 75mm and 100mm sizes.
| Size | Part No. PG | Part No. HG | Part No. SS | W (mm) | C (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| 50mm x 3m | TUHLT050/10PG | TUHLT050/10HG | TUHLT050/10SS | 50 | 0.80 | 3.16 |
| 75mm x 3m | TUHLT075/10PG | TUHLT075/10HG | TUHLT075/10SS | 75 | 0.80 | 3.46 |
| 100mm x 3m | TUHLT100/10PG | TUHLT100/10HG | TUHLT100/10SS | 100 | 0.80 | 3.92 |
| 150mm x 3m | TUHLT150/10PG | TUHLT150/10HG | TUHLT150/10SS | 150 | 0.80 | 4.71 |
| 225mm x 3m | TUHLT225/15PG | TUHLT225/15HG | TUHLT225/15SS | 225 | 1.20 | 8.72 |
| 300mm x 3m | TUHLT300/15PG | TUHLT300/15HG | TUHLT300/15SS | 300 | 1.20 | 10.59 |
| 450mm x 3m | TUHLT450/20PG | TUHLT450/20HG | TUHLT450/20SS | 450 | 2.00 | 23.28 |
| 600mm x 3m | TUHLT600/20PG | TUHLT600/20HG | TUHLT600/20SS | 600 | 2.00 | 29.35 |
| 750mm x 3m | TUHLT750/20PG | TUHLT750/20HG | TUHLT750/20SS | 750 | 2.00 | 45.3 |
| 900mm x 3m | TUHLT900/20PG | TUHLT900/20HG | TUHLT900/20SS | 900 | 2.00 | 52.85 |

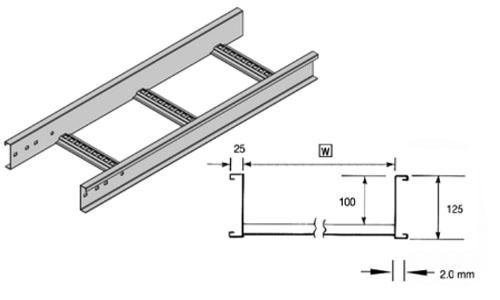

Unistrut Ladder Cable Tray
- The 150mm high Extreme Duty cable ladder is designed for applications requiring additional strength and reliability, offering a durable solution.
- Supplied in 3 or 6m lengths with widths ranging from 100 to 1000mm, it comes with a wide range of accessories and fittings for versatile installation.
| U10 L3 (3 metre Length) | U10 L6 (6 metre Length) | |||||
| Size (W) mm | Product Code HG | Product Code SS | Weight (kg) | Product Code HG | Product Code SS | Weight (kg) |
|---|---|---|---|---|---|---|
| 100 | U10L3100H | U10L3100S | 13.2 | U10L6100H | U10L6100S | 26.53 |
| 150 | U10L3150H | U10L3150S | 13.8 | U10L6150H | U10L6150S | 27.67 |
| 200 | U10L3200H | U10L3200S | 14.4 | U10L6200H | U10L6200S | 28.81 |
| 300 | U10L3300H | U10L3300S | 15.55 | U10L6300H | U10L6300S | 31.10 |
| 400 | U10L3400H | U10L3400S | 16.69 | U10L6400H | U10L6400S | 33.39 |
| 450 | U10L3450H | U10L3450S | 17.27 | U10L6450H | U10L6450S | 34.53 |
| 500 | U10L3500H | U10L3500S | 17.84 | U10L6500H | U10L6500S | 35.68 |
| 600 | U10L3600H | U10L3600S | 18.98 | U10L6600H | U10L6600S | 37.97 |
| 700 | U10L3700H | U10L3700S | 22.13 | U10L6700H | U10L6700S | 44.25 |
| 750 | U10L3750H | U10L3750S | 22.84 | U10L6750H | U10L6750S | 45.68 |
| 800 | U10L3800H | U10L3800S | 23.55 | U10L6800H | U10L6800S | 47.11 |
| 900 | U10L3900H | U10L3900S | 24.98 | U10L6900H | U10L6900S | 49.97 |
| 1000 | U10L31000H | U10L31000S | 26.41 | U10L61000H | U10L61000S | 52.83 |

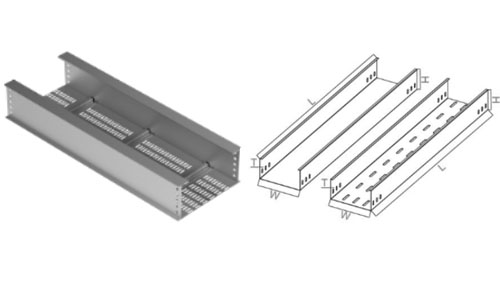

Unistrut Solid Bottom Cable Tray
- Solid-bottom Cable trays for fiber-optic cable installations where drooping of cables may affect system performance, solid-bottom (non-ventilated) cable trays are preferred.
- However, the main reason for selecting solid-bottom trays is a concern for electromagnetic/ radio-frequency interference protection.
| Tray Width (W) | Tray Height (H) | Tray Collar (C) | Thickness (T) | Tray of Raw Material | Finish |
| 50 mm or 1000 mm | 25 mm to 100 mm | 15 mm to 25 mm | 1.6 mm to 3.00 mm | Mild Steel (M.S) & Aluminium & S. S | Hot Dip Galvanized, Powder Coated, Enamel Painted |
Unistrut Wire Mesh Cable Tray
| Length | Width | Height |
| 1000mm – 3000mm | 100mm – 800mm | 50mm, 75mm, 150mm |

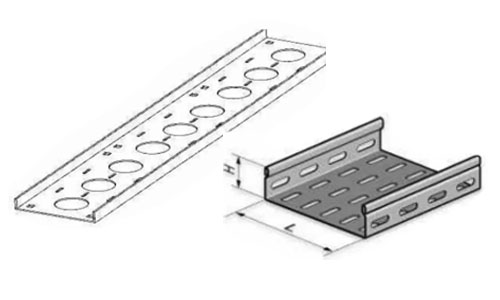

Ventilated Bottom Cable Tray
| Width (mm) | Height (mm) | Length (mm) |
| 50 | 25 | 3000/6000 |
| 100 | 25 | 3000/6000 |
| 150 | 25 | 3000/6000 |
| 200 | 25 | 3000/6000 |
| 300 | 25 | 3000/6000 |
| 100 | 35 | 3000/6000 |
| 150 | 35 | 3000/6000 |
| 200 | 35 | 3000/6000 |
| 300 | 35 | 3000/6000 |
| 54 | 54 | 3000/6000 |
| 100 | 54 | 3000/6000 |
| 150 | 54 | 3000/6000 |
| 200 | 54 | 3000/6000 |
| 300 | 54 | 3000/6000 |
| 400 | 54 | 3000/6000 |
| 450 | 54 | 3000/6000 |

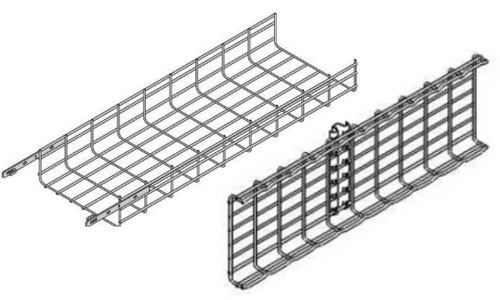

Wire Mesh Cable Tray
Unistrut Cable Tray Support Accessories

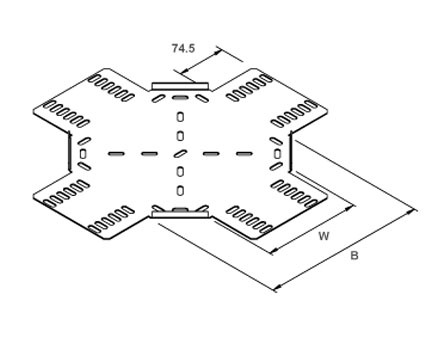

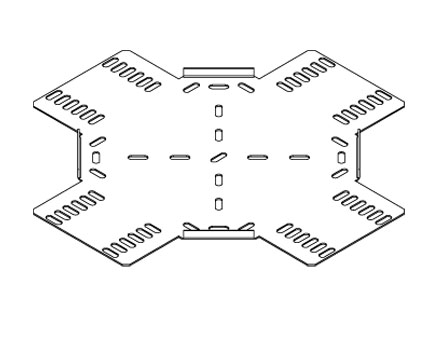

Unistrut Equal Cross Tray

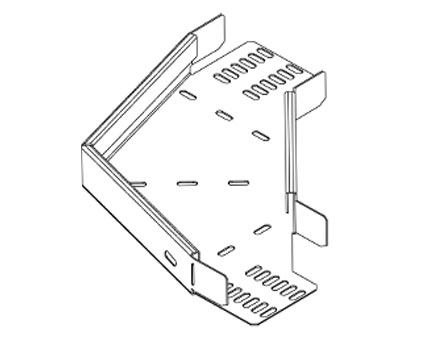

Unistrut Flat Bend Tray

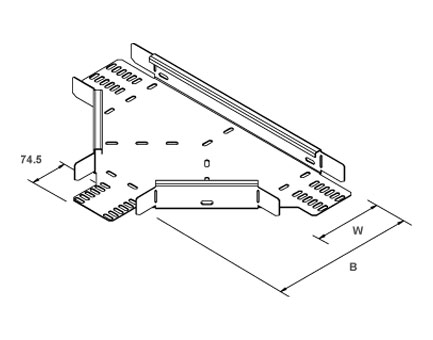

Unistrut Equal Tee Tray

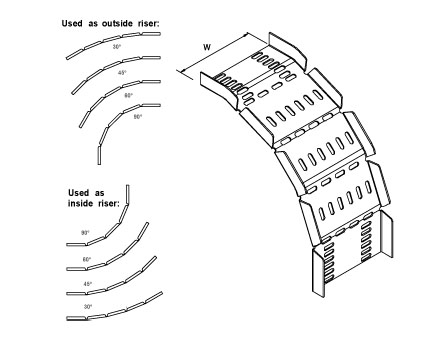

Unistrut Adjustable Risers

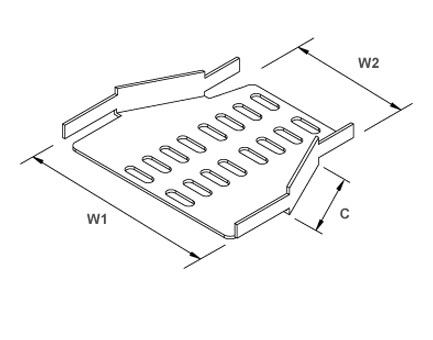

Unistrut Cable Tray Reducer
Unistrut Cantilever Brackets, Cable Tray Support Accessories, Cable Tray Installation, Ventilated Trough Cable Tray, Cable Tray Ceiling Distributer
Get in touch with Robexstrut today for unbeatable prices on Unistrut Cable Tray Support!

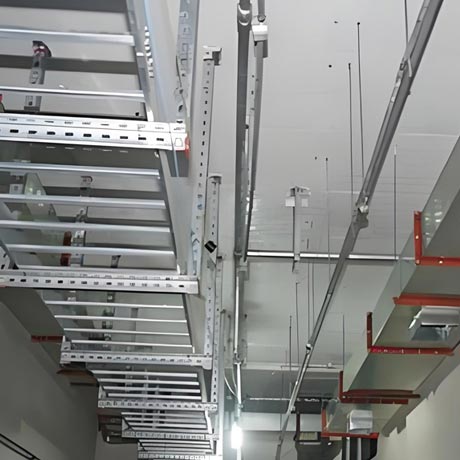

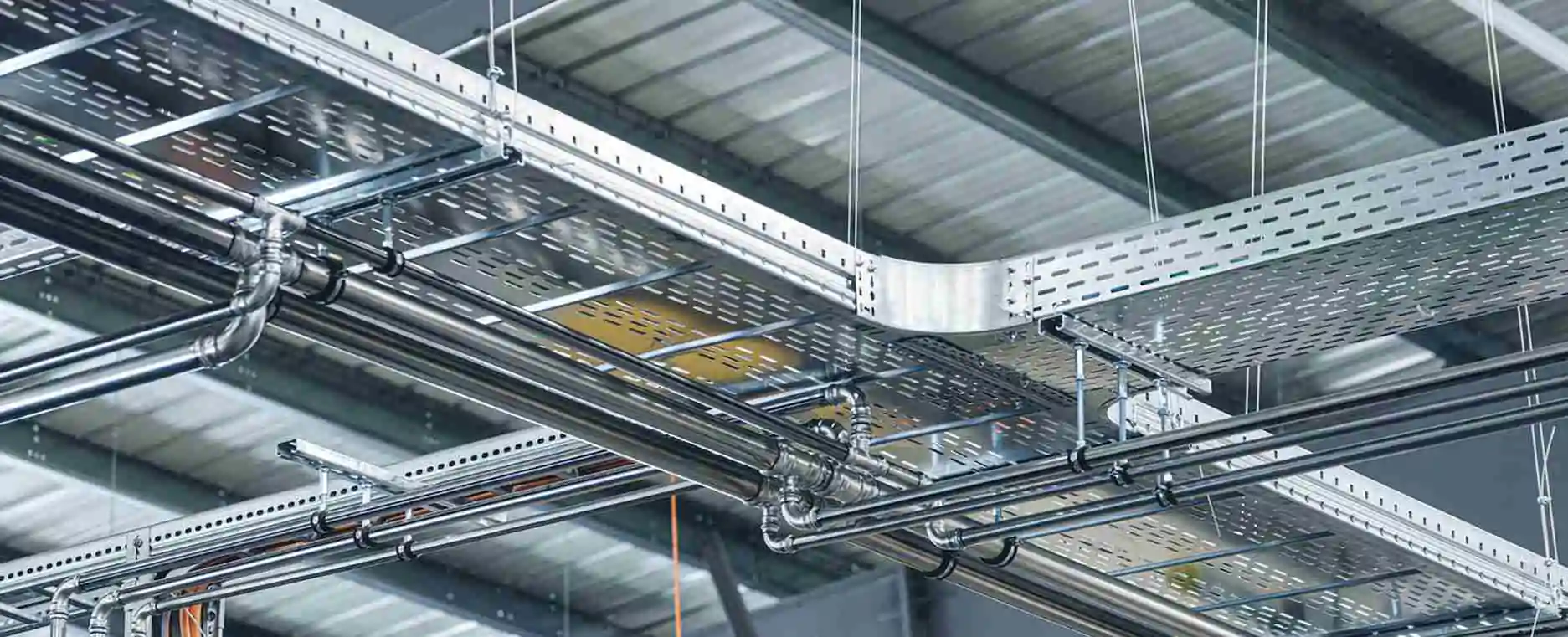

Unistrut Cable Tray Applications
