Unistrut Beam Clamps
Top Rated Unistrut Beam Clamps supplier in Mumbai, India. Get the best price now!
Robexstrut is a leading dealer and supplier of premium-quality unistrut beam clamps designed for a variety of structural applications. Unistrut beam clamps are essential components made from hot-rolled, pickled, and oiled steel plates, strips, or coils, adhering to stringent ASTM standards such as A575, A576, A635, or A36. These clamps are designed to secure W, M, S, and HP-shaped beams, as well as Standard C, Miscellaneous MC Channels, Angles, and Structural Tees. For added convenience, they are available in HG finishes, with standard EG hardware or optional stainless steel hardware upon request. Ensure reliable support with our unistrut beam clamps crafted to deliver exceptional performance.
- Chief Sourcing Partner for unistrut beam clamps
- Trusted Supplier of beam clamp for unistrut in India
- Stockist of beam clamps unistrut in Mumbai
Buy unistrut beam clamps at a very good price in India. Contact us now!
Our high-quality Unistrut beam clamps, including options like Unistrut-to-I-beam clamps and Unistrut window beam clamps, are perfect for securely attaching Unistrut channels to a variety of beams. Looking for specialized beam clamps for Unistrut installations, we offer reliable solutions for every need
Unistrut P2897 - Beam Clamp
Design Load (Safety Factor of 4)
(angles ≤ 25°) – 550 Lbs (2.45 kN)
(angles > 25°) – 330 Lbs (1.47 kN)
Safety Factor 4
Torque: 13 Ft-Lbs (18 N•m)
Unistrut P2784 - Beam Clamp
| Part Number | For Use With | load Lbs (kN) | Wt/100 pcs Lbs (kg) |
| P2784-1 | P1000, P1100, P2000 | 1,200 5.34 | 175 79.3 |
| P2784-2 | P1001, P1101, P2001 | 1,200 5.34 | 179 81.1 |
| P2784-3 | P5001, P5501 | 1,200 5.34 | 180 81.5 |
Unistrut P2868 - Beam Clamp
- Includes: Center Rod, “U” Bolts and Hex Nuts
- For use with Channels P1000, P1100, P2000, P3000,
P3300, P3301, P4000, P4001, P4100, and P4101.
| Part Number | Beam Size “A” | Wt/100 pcs (Lbs/Kg) |
|---|---|---|
| P2868 | 4″-6″ | 282 (127.9) |
| P2868-9 | 6″-9″ | 289 (131.1) |
| P2868-12 | 9″-12″ | 296 (134.3) |
| P2868-15 | 12″-15″ | 304 (137.9) |
| P2868-18 | 15″-18″ | 311 (141.1) |
Unistrut P2868A - Beam Clamp
- Includes: Center Rod, “U” Bolts and Hex Nuts.
- For use with Channels P1001, P1101, P2001, P3001, P5000, and P5500.
| Part Number | Beam Size “A” | Wt/100 pcs (Lbs/Kg) |
|---|---|---|
| P2868A | 4″-6″ | 300 (136.1) |
| P2868A-9 | 6″-9″ | 307 (139.3) |
| P2868A-12 | 9″-12″ | 314 (142.2) |
| P2868A-15 | 12″-15″ | 322 (146.1) |
| P2868A-18 | 15″-18″ | 329 (149.2) |
Unistrut P2868B - Beam Clamp
- Includes: Center Rod, “U” Bolts
and Hex Nuts. - For use with Channels P5001,
and P5501.
| Part Number | Beam Size “A” | Wt/100 pcs (Lbs/Kg) |
|---|---|---|
| P2868B | 4″-6″ | 320 (145.1) |
| P2868B-9 | 6″-9″ | 327 (148.3) |
| P2868B-12 | 9″-12″ | 334 (151.5) |
| P2868B-15 | 12″-15″ | 342 (155.1) |
| P2868B-18 | 15″-18″ | 349 (153.3) |
Unistrut P2894 - Beam Clamp
- Material: Malleable Iron
7⁄8″ Maximum Flange Thickness. - Note: Tapped Hole on Top and Bottom
| Part Number | Rod Size (In) | “A” (In / mm) | “B” (In / mm) | Load Ratings (Lbs / kN) | Wt/100 pcs (Lbs / Kg) |
|---|---|---|---|---|---|
| P2894-25 | 1/4 | 1 1/8 (28.6) |
1 1/4 (31.8) |
150 (0.67) | 23 10.4 |
| P2894-37 | 3/8 | 2 (50.8) | 2 (50.8) | 350 (1.56) | 95 43.1 |
| P2894-50 | 1/2 | 2 5/8 (66.7) |
2 1/2 (63.5) |
400 (1.78) | 195 88.5 |
Unistrut P2895 - Beam Clamp
- Material: Steel
| Part Number | Rod Size (In) | “A” (In / mm) | “B” (In / mm) | Load Ratings (Lbs / kN) | Wt/100 pcs (Lbs / Kg) |
|---|---|---|---|---|---|
| P2895-37 | 3/8 | 2 5/16 (58.7) | 3/8 (9.5) | 330 (1.47) | 35 15.9 |
| P2895-50 | 1/2 | 2 1/4 (57.2) | 1/2 (12.7) | 380 (1.69) | 41 18.6 |
| P2895-62 | 5/8 | 2 3/8 (60.3) | 5/8 (15.9) | 450 (2.00) | 67 30.4 |
| P2895-75 | 3/4 | 21/4 (57.2) | 1/2 (12.7) | 500 (2.22) | 72 32.7 |
Unistrut P2896 - Beam Clamp
- Material: Malleable Iron,
Steel Set Screw
| Part Number | Rod Size (In) | “A” (In / mm) | “B” (In / mm) | Load Ratings (Lbs / kN) | Wt/100 pcs (Lbs / Kg) |
|---|---|---|---|---|---|
| P2896-37 | 3/8 | 1 11/16 (42.9) | 1 3/4 (44.5) | 400 (1.78) | 38 17.2 |
| P2896-50 | 1/2 | 1 23/32 (43.7) | 1 3/4 (44.5) | 400 (1.78) | 52 23.6 |
| P2896-62 | 5/8 | 1 15/16 (49.2) | 2 (50.8) | 450 (2.00) | 68 30.8 |
| P2896-75 | 3/4 | 2 1/32 (51.6) | 2 (50.8) | 600 (2.67) | 128 58.1 |
Unistrut P1386 - Beam Clamp
- Clamp Requires1⁄2″ – 13 X 11⁄2″
Hex Head Cap Screwand
1⁄2″ Channel Nut Not Included.
| Channel Style | Design Load Each (Lbs / kN) (Use in Pairs Only) |
|---|---|
| P1000 | 600 (2.67) |
| P1100 | 500 (2.22) |
| P2000 | 450 (2.00) |
Unistrut P1379S - Beam Clamp
- Clamp Requires 1⁄2″ x 13⁄16″ Hex Head Cap Screw and 1⁄2″ Channel
Nut Not Included.
| Channel Style | Design Load Each (Lbs / kN) (Use in Pairs Only) |
|---|---|
| P1000 | 600 (2.67) |
| P1100 | 500 (2.22) |
| P2000 | 450 (2.00) |
Unistrut P1272S, P1985S, P1986S - Beam Clamp
| Part Number | “A” In (mm) | Flange Thickness In (mm) | “D” Set Screw Included | Wt/100 pcs Lbs (kg) | Design Load Per Pair Lbs (kN) |
|---|---|---|---|---|---|
| P1272S | 1/4 Up to 3/4 | 3/8-16 x 1 1/2 | 39 | 450 (2.00) | 6.4 Up to 19.1 17.7 |
| P1985S | 3/8 Up to 3/4 | 1/2-13 x 1 1/2 | 62 | 1,000 (4.45) | 9.5 Up to 19.1 28.1 |
| P1986S | 3/8 7/8 to 2 | 1/2-13 x 1 1/2 | 74 | 900 (4.00) | 9.5 22.2 – 50.8 33.6 |
Unistrut P3087 - Beam Clamp
- Adjusting Screws Included
- Unistrut channel not included.
- Part number P3087 consists of:
-
(1) piece P3087A,
(2) piece P3087B and
(3) set screws, 3⁄8″ Dia.
| Channel Part Number | Design Pull Out Load Lbs (kN) | Design Slip Load Lbs (kN) |
|---|---|---|
| P1000 | 1,000 (4.45) | 800 (3.56) |
| P1100 | 700 (3.34) | 500 (2.22) |
| P2000 | 500 2.22 | 300 1.33 |
Unistrut PFL050T - Beam Clamp
- Material: Malleable Iron.
- Cup point set screw
and lock nut included. - Set Screw Torque = 6 Ft-Lb
Lock Nut Torque = 16 Ft-Lb
| Part Number | Type of Hole | Rod Size | “Z” Set Screw Size | Wt/100 pcs Lbs (kg) | Max. Allowable Load Lbs (kN) |
|---|---|---|---|---|---|
| PFL050 | Clear | 1/2″ | 3/8″ | 40 (18.1) | 700 (3.11) |
| PFL050T | Tapped | 1/2″ | 3/8″ | 40 (18.1) | 700 (3.11) |
| Dimensions | ||||||
| Part Number | T (In / mm) | U (In / mm) | V (In / mm) | W (In / mm) | X (In / mm) | Y (In / mm) |
|---|---|---|---|---|---|---|
| PFL050 | 2 / 50.8 | 1 23⁄32 / 43.7 | 1 29⁄32 / 25.4 | 13⁄32 / 23.0 | 9⁄16 / 27.8 | 14.3 |
| PFL050T | 2 / 50.8 | 1 23⁄32 / 43.7 | 1 29⁄32 / 25.4 | 13⁄32 / 23.0 | 1⁄2 Tapped / 27.8 | Hole |
Unistrut PLF3075 - Beam Clamp
- Material: Malleable Iron.
| Part Number | Rod Size | Wt/100 pcs (Lbs / kg) | Max. Allowable Load (Lbs / kN) | Torque (Ft-Lbs) |
|---|---|---|---|---|
| PLF3050 | 1/2″ | 91 41 |
450 2.00 |
29 |
| PLF3062 | 5/8″ | 186 84 |
900 4.00 |
69 |
| PLF3075 | 3/4″ | 334 152 |
1,350 6.01 |
130 |
| Dimensions | ||||||
| Part Number | X (in / mm) | W (in / mm) | V (in / mm) | T (in / mm) | R (in / mm) | S (in / mm) |
|---|---|---|---|---|---|---|
| PLF3050 | 1 3/8 34.9 | 0 – 19/16 0 – 39.7 | 1/2 12.7 | 11/32 8.7 | 115/16 49.2 | 15/32 29.4 |
| PLF3062 | 1 13/16 46.0 | 0 – 23/16 0 – 55.6 | 5/8 15.9 | 1/2 12.7 | 211/32 59.5 | 17/16 36.5 |
| PLF3075 | 23/16 55.6 | 0 – 13/4 0 – 44.5 | 3/4 19.1 | 5/8 15.9 | 3 76.2 | 13/4 44.5 |
Unistrut PLF903 thr PLF9100 - Beam Clamp
| Part Number | Rod Size | Wt/100 pcs (Lbs) | Max. Allowable Load (Lbs) | Torque (Ft-Lbs) | X (In) | W (In) | V (In) | T (In) | S (In) |
|---|---|---|---|---|---|---|---|---|---|
| PLF9037 | 3/8″ | 55 24.9 |
440 1.96 |
15 | 1 25.4 |
3/4-111/16 19.1-42.9 |
1/2 12.7 |
3/4 19.1 |
1 25.4 |
| PLF9050 | 1/2″ | 122 55.3 |
630 2.80 |
29 | 13/8 34.9 |
1-23/8 25.4-60.3 |
21/32 16.7 |
15/16 23.8 |
113/16 30.2 |
| PLF9062 | 5/8″ | 200 90.7 |
1,260 5.60 |
69 | 111/16 42.9 |
11/8-23/4 28.6-69.9 |
13/16 20.6 |
11/8 28.6 |
13/8 34.9 |
| PLF9075 | 3/4″ | 367 166.5 |
1,880 8.36 |
131 | 2 50.8 |
11/4-31/4 31.8-82.6 |
1 25.4 |
13/8 34.9 |
13/4 44.5 |
| PLF9100 | 1″ | 1,101 499.4 |
3,150 14.01 |
173 | 3 76.2 |
13/4-33/4 44.9-95.3 |
11/2 38.1 |
23/16 55.6 |
21/2 63.5 |

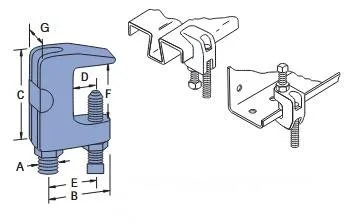

Universal Beam Clamp (UNO) Beam Clamp
| Part No. | A (In) | B | C | D | E | F | G | Max Load | Wt/100 pcs | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| In | (mm) | In | (mm) | In | (mm) | In | (mm) | In | (mm) | In | (mm) | Lbs | (kN) | Lbs | (kg) | ||
| P2898-37 | ⅜ | 1 | 25.4 | 1½ | 38.1 | ½ | 12.7 | 1 | 25.4 | ¾ | 19.1 | ⅞ | 22.2 | 400 | 1.78 | 33 | 15.0 |
| P2898-50 | ½ | 1½ | 38.1 | 1¾ | 44.5 | ½ | 12.7 | 1 | 25.4 | ¾ | 19.1 | ⅞ | 22.2 | 500 | 2.22 | 35 | 15.9 |
| P2898-62 | ⅝ | 1½ | 38.1 | 1¾ | 44.5 | ½ | 12.7 | 1 | 25.4 | ¾ | 19.1 | ⅞ | 22.2 | 600 | 2.67 | 49 | 22.0 |
| P2898-75 | ¾ | 1¾ | 44.5 | 2 | 50.8 | ¾ | 19.1 | 1⅜ | 35.0 | 1 | 25.4 | 1¼ | 31.8 | 800 | 3.56 | 59 | 26.8 |
| P2898-87 | ⅞ | 2 | 50.8 | 1¾ | 44.5 | 1½ | 38.1 | 1½ | 38.1 | 1 | 25.4 | 1¼ | 31.8 | 1,200 | 5.34 | 79 | 35.9 |
Unistrut Beam Clamps for 1-5/8" Metal Framing Strut
Unistrut P2785 - Beam Clamp
- For use with Beams up to 3 ⁄4″ (19.1) Flanges and with Channels P1000, P1100, P2000, P3000, P3300, P3301, P4000, P4001, P4100, and P4101.
Unistrut P2786 - Beam Clamp
- For use with Beams up to 3
⁄4″ (19.1)
Flanges and with
Channels P1001, P1101, P2001,
P3001, P5000, and P5500.
Unistrut P2787 - Beam Clamp
- For use with Beams up to 3 ⁄4″ (19.1) Flanges and with Channels P5001 and P5501.
Unistrut P2867 - Beam Clamp
- Includes: “J” Bolt, “U” Bolt and Hex Nuts.
- For use with Channels P1000, P1100, P2000, P3000, P3300, P3301, P4000, P4001, P4100, and P4101.
Unistrut P2867A - Beam Clamp
- Includes: “J” Bolt, “U” Bolt and Hex Nuts
- For use with Channel P1001, P1101, P2001, P3001, P5000, and P5500.
Unistrut P2867B - Beam Clamp
- includes: “J” Bolt, “U” Bolt and Hex Nuts.
- For use with Channel P5001, and P5501.
Unistrut P1271S - Beam Clamp
- Note: Requires P1010 Channel Nut and bolt
- Design Load Each 500 Lbs (2.22 kN) Use in Pairs Only
Unistrut P1796S - Beam Clamp
- Design Load Each 500 Lbs (2.22 kN) Use in Pairs Only

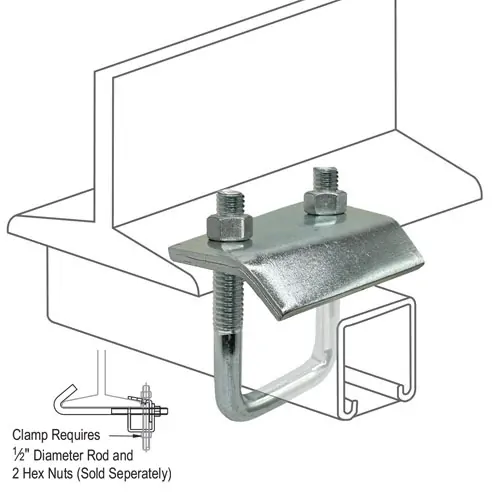

Unistrut P2824-6,-9,-12 - Beam Clamp
- For use with Beams up to
3⁄4″ (19.1) max flange thickness - Clamp Requires
1⁄2″ Diameter Rod and
2 Hex Nuts (Sold Seperately)
Unistrut P2893 - Beam Clamp
- Material: Steel
- Use With: 1⁄4″ rod
- Load Rating: 75 lbs. (.33 kN)
Unistrut U Bolt Beam Clamp, Beam Clamps Unistrut, Unistrut Steel Beam Clamp, Unistrut Window Clamp, Strut Window Clamp, Strut Beam Clamps, Heavy Duty Beam Clamp, I Beam Clamps, Steel Beam Clamp, Ibeam Clamp
Beam Clamps Unistrut Applications
Product
| Channel Part Number | Design Pull Out Load Lbs (kN) | Design Slip Load Lbs (kN) |
|---|---|---|
| P1000 | 1,000 (4.45) | 800 (3.56) |
| P1100 | 700 (3.34) | 500 (2.22) |
| P2000 | 500 | 300 |
